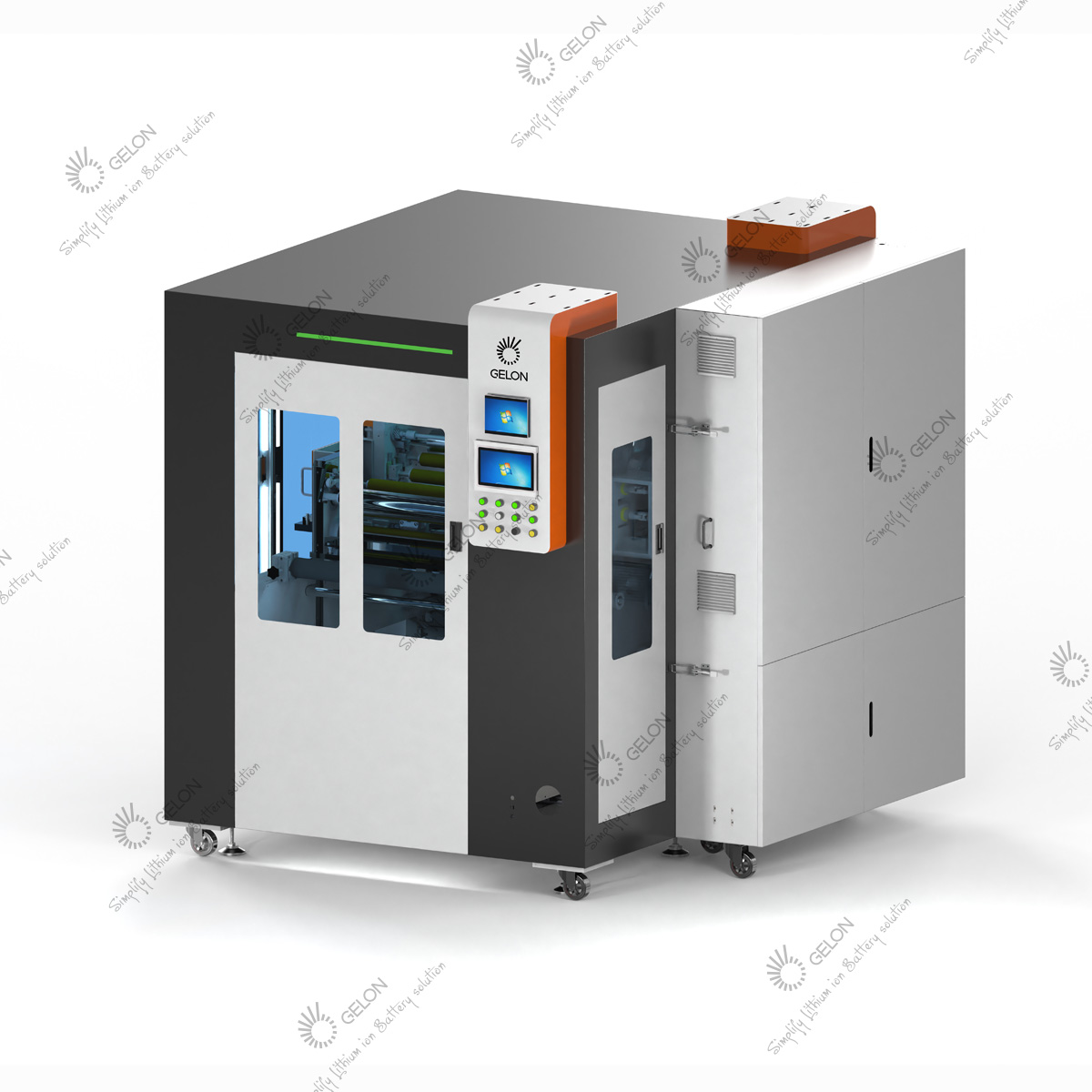

The calendered anode/cathode electrodes are loaded onto the unwinding mechanism. Driven by a traction system, the electrode sheet is fed into a set of slitting knives arranged according to the required process specifications for slitting. The upper and lower rewinding mechanisms then separately wind the slit strips into rolls, while the edge trimmings are collected by the edge trim handling system. The equipment, assisted by auxiliary systems such as an EPC system, tension drive system, and dust collection system, ensures precise operation, maintaining stable electrode running to guarantee stable slitting performance and keep all process indicators—such as burrs and straightness—within the specified process range.
The calendered anode/cathode electrodes are loaded onto the unwinding mechanism. Driven by a traction system, the electrode sheet is fed into a set of slitting knives arranged according to the required process specifications for slitting. The upper and lower rewinding mechanisms then separately wind the slit strips into rolls, while the edge trimmings are collected by the edge trim handling system. The equipment, assisted by auxiliary systems such as an EPC system, tension drive system, and dust collection system, ensures precise operation, maintaining stable electrode running to guarantee stable slitting performance and keep all process indicators—such as burrs and straightness—within the specified process range.
Name | Parameters | Remarks |
Suitable Systems | Electrode sheets after coating and calendering, for systems such as LFP, LCO, LMO, NMC, NCA, LTO, carbon/graphite, etc. | |
Operating Substrate Parameters | 1. Aluminum foil (AL): Thickness 8–30 μm; Width 50–650 mm. 2. Maximum roll diameter: 400 mm. | |
Stretching Method | 1. Copper foil (Cu): Thickness 4.5–30 μm; Width 50–650 mm. 2. Maximum roll diameter: 400 mm. | |
Designed Roller Face Width | 750 mm | |
Guaranteed Slitting Width | 50-650mm | |
Mechanical Operating Speed | 50m/min | |
Slitting Speed | 0-40m/min | Subject to slitting performance evaluation |
Electrode Thickness Range | 10-250um | |
Slitting Method | 1. Slitting method: Shear cut with blade combination. 2. Slitting range: 50–650 mm. 3. Spacer sleeves for specifications (specific dimensions to be determined). | |
Rewinding Method | Dual-shaft differential slip shaft offset rewinding | |
Utilization Rate | ≥ 99% (electrode break rate < 1%) | |
Air Consumption | 450L/h； | |
Power Supply Configuration | 30A/50Hz | |
Power | 6KW | |
Overall Equipment Dimensions | ||
Dust Collector Dimensions | ≈L800xW800xH1,400mm | |
Knife Carriage Cart Dimensions | ≈L1,200*W400*H1,000mm | |
Weight | Approx. 3.5T | Total weight subject to actual build; ratio of total weight to bearing area ≤ 500 kg/m². |
Warranty Period | 1-year warranty, lifetime maintenance | |
