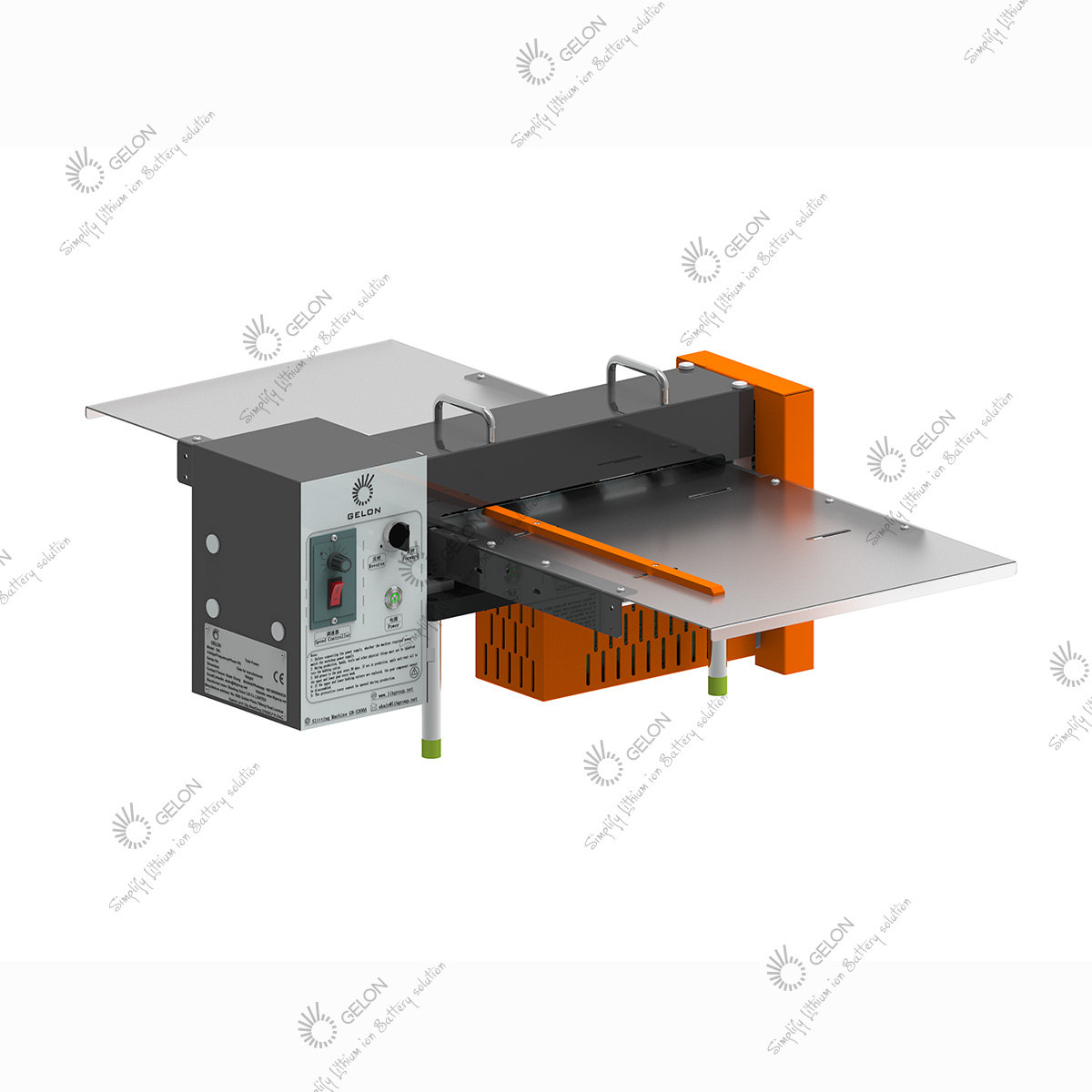

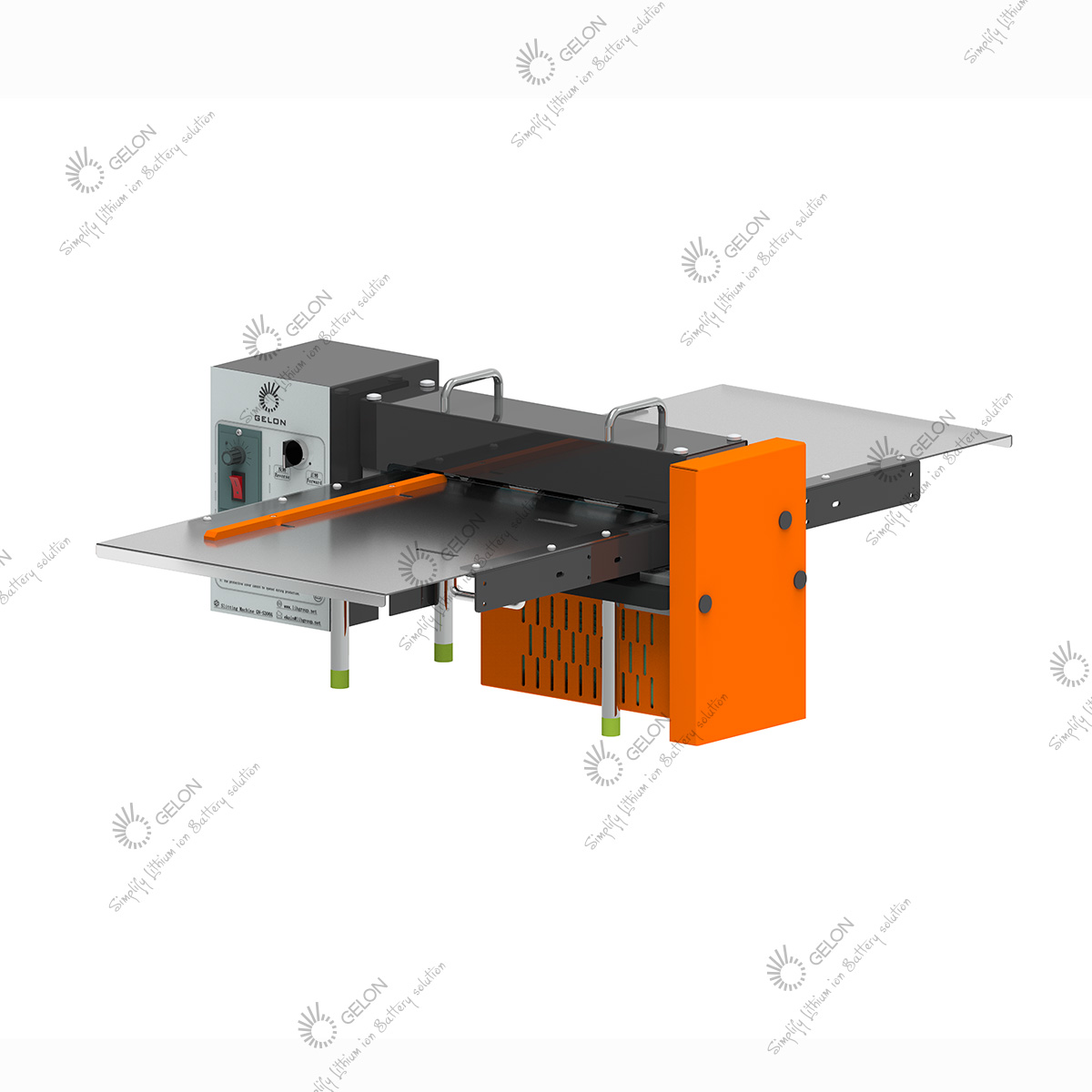

This machine uses a circular cutting knife and roller-style slitting, whose slitting principle is to cut the electrodes by driving the upper and lower slitting knife seats with an electric motor, with manual feeding and automatic blanking. Pre-cut the lithium-ion battery electrodes to the desired length, place the cut electrodes against the feeding guide edge to align them properly, and then gently guide them into the cutting system by hand.
1. Sheet-like feeding, upper and lower circular knife cutting method. The slitting knife replacement is more convenient, and adjustment is simpler.
2. Motor-driven, with feeding guidance and small slitting burrs.
3. D2 material slitting knives are treated with heat treatment, resulting in good slitting effect and long service life.
4. Inlet and outlet are equipped with stainless steel receiving plates.
5. The entire slitting knife assembly is enclosed within a protective cover, ensuring safe operation.
Name | Parameters | Remarks |
Slitting Material | Copper foil, aluminum foil, cathode and anode electrodes | |
Slitting Method | Fixed upper and lower roller slitting | |
Material Thickness | 15—300um | |
Maximum Width of Incoming Material | 300mm | |
Minimum Slitting Width | ≥40mm | Customized |
Slitting Width Accuracy | ±0.1mm | Ensure that the placement is flat, vertical, and the operation is horizontal |
Cutting Knife Life | 5000m/pc | |
Slitting Speed | Adjustable by electric speed controller | |
Power Supply | AC220V/50Hz.（110V/60Hz） | Customized |
Power | 250W | |
Equipment Dimensions | ≈L687*W1058*H348mm | Including receiving plate |
Size of Wooden Box after Equipment Packaging | ≈L770*W330*H500mm | Packed up after disassembling the material receiving plate |
Net Weight of Equipment | ≈140kg | |
Gross Weight of Equipment | ≈156kg | |
Usage Site | Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions | |
Warranty Period | 1-year warranty, lifetime maintenance |
