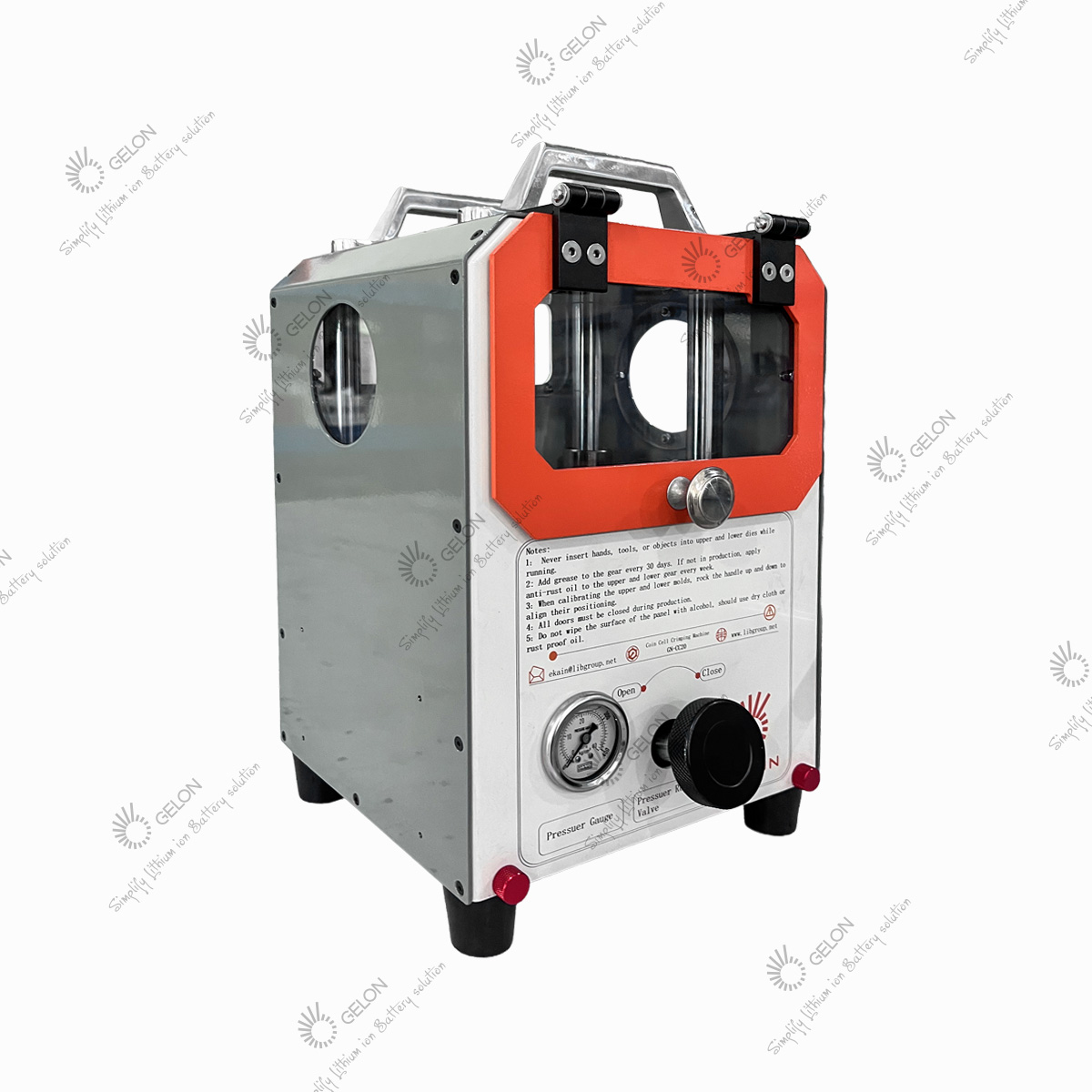

1. This equipment is mainly used for crimping and disassembling coin cells. Only one type (sealing/disassembling) die can be selected as standard for this equipment. The hand lever drives the hydraulic pump; after placing the battery into the die, the hand lever is operated, causing the upper and lower dies to automatically close and form the battery seal. It is used for making sample coin cells and capacitor sealing in laboratory battery material research and development, and can also be used for small batch trial production in factories.
2. The dismantling die is used for disassembling the cathode and anode electrode cases of coin cells after crimping, facilitating the sampling and analysis of the internal materials of the battery for research.
1. Equipped with a specially designed hydraulic structure, it has high pressure and is labor-saving to operate.
2. High precision in crimping and forming, and convenient to operate.
3. With different dies, it can encapsulate and disassemble coin cells of various specifications.
4. Aesthetically pleasing in appearance, easy to maintain, with the advantages of compact size, convenient operation, and precise forming.
Name | Parameters | Remarks |
Crimping Pressure | Min.50Kg/cm2， Max.100Kg/cm2 | The pressure is adjustable for batteries of different diameters. If there are no special requirements at the time of shipment, the machine will be set to the optimal pressure for sealing CR20 series coin cells: 50kg/cm² to 100kg/cm². |
Crimping Stroke | About 30mm | |
Crimping Efficiency | 60 seconds/piece | Reference to CR2032 |
Crimping Die | CR2032 is standard | Other models can be customized |
Dismantling Die | CR2032 is standard | Other models can be customized |
Working Method | Manual | This equipment can be used inside a glove box. |
Equipment Dimensions | ≈L265*W320*H400mm | |
Size after Packaging | ≈L380*W470*H650mm | |
Net Weight of Equipment | ≈29kg | |
Gross Weight of Equipment | ≈40kg | |
Usage Site | Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions | |
Warranty Period | 1-year warranty, lifetime maintenance |
