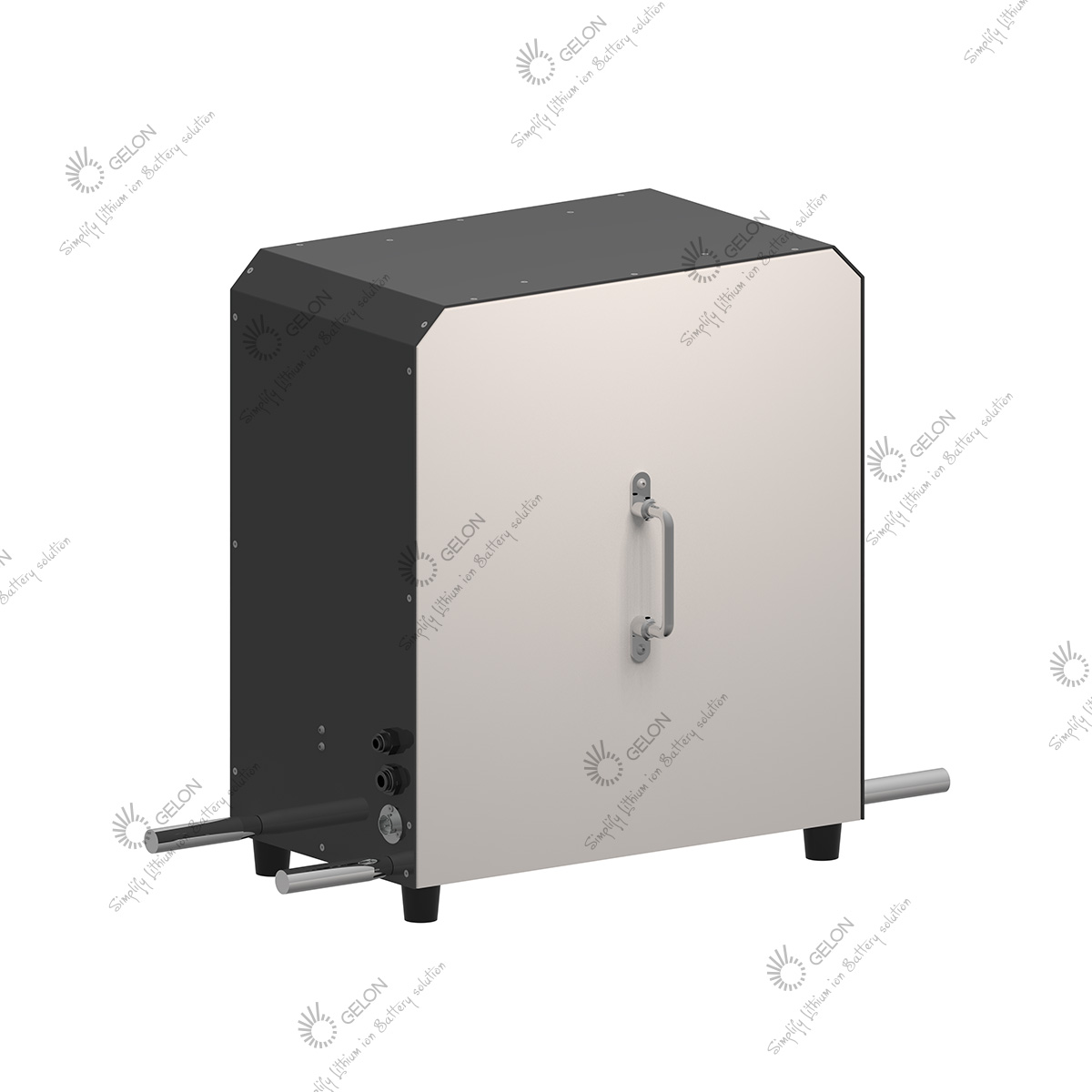

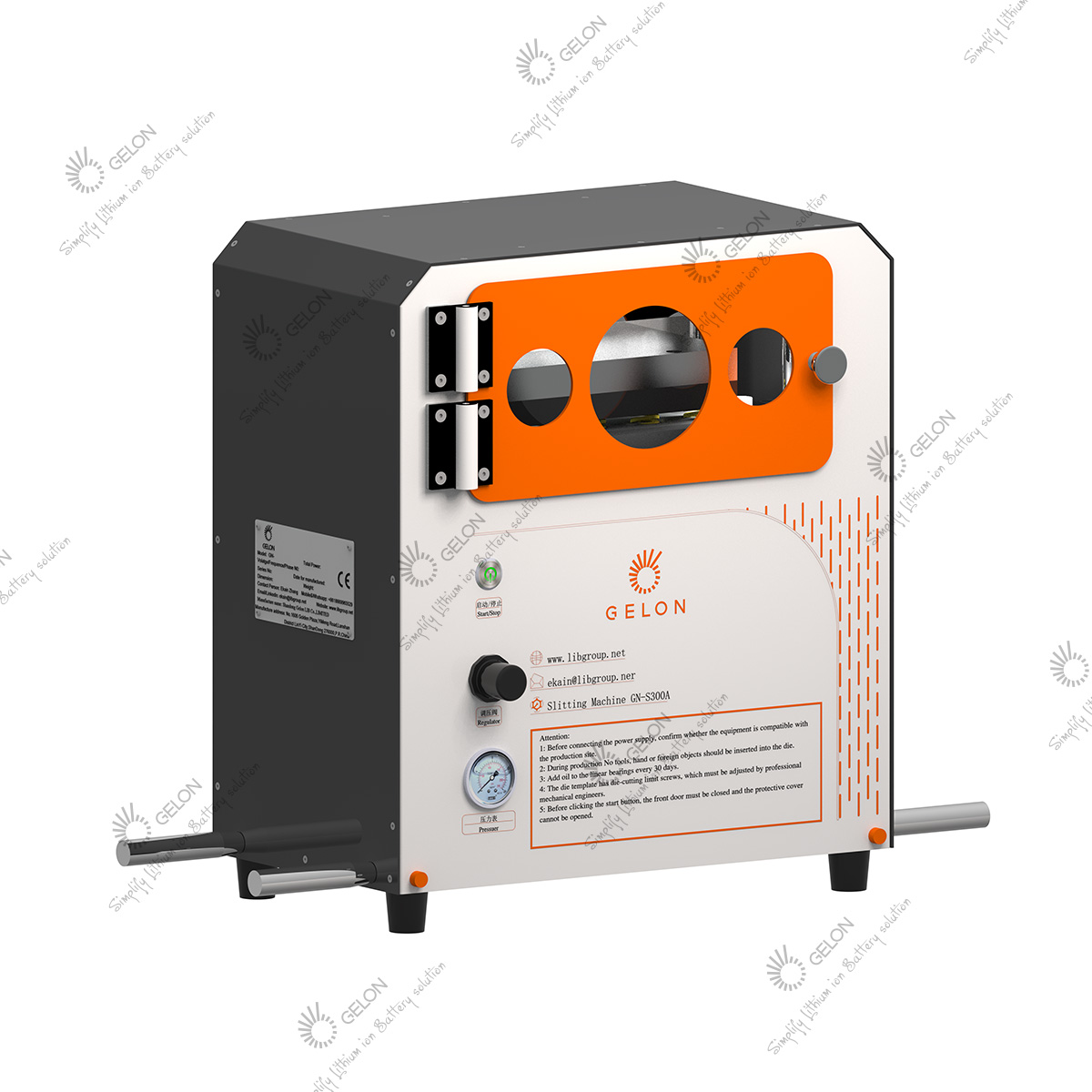

The equipment applied to the punch forming of aluminum-laminated film for pouch cells drives the die to rise through a multiplier cylinder to complete the punch forming process. After forming, the lower die resets to its original position. Corresponding forming die can be manufactured according to customer size requirements.
1. Sheet AL-plastic film forming, suitable for R&D and sample making applications.
2. The formed product has uniform stretching, high-quality stretch effect, and no injuries or ruptures.
3. Driven by a force multiplier cylinder, the forming pressure is adjustable.
4. The material feed opening is protected by a safety light grid, ensuring safe operation.
5. Comes with a set of standard size dies, and can also be made according to cus.tomer requirements
Name | Parameters | Remarks |
Forming Size | Max.L90*W50mm | Customized |
Forming Pressure | ≈1T | Adjustable |
Forming Size | Single forming foldable (with air bag) MAX: L90mmW50mm (air bag width 50 without forming) | |
Punching Stroke | About 30mm | |
Punching Depth | Max. 6mm | The depth of the punch in aluminum-laminated film is related to its drawing performance. |
Tolerance of Forming Size | ±0.5mm | |
Thickness of AL-laminated Film | 0.1~ 0.2mm | |
Gas Source | 0.5~0.8MPa argon, nitrogen (inside glove box), or 0.5~0.8MPa compressed air | If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used to place the equipment outside the glove box. |
Power Supply | AC220V/50Hz.（110V/60Hz） | Customized |
Power | 100W | |
Equipment Dimensions | ≈L655*W310*H530mm | |
Size of Wooden Box after Equipment Packaging | ≈L770*W460*H790mm | |
Net Weight | Approx. 85Kg | Including dies |
Gross Weight | Approx. 95Kg | |
Usage Site | Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions | |
Warranty Period | 1-year warranty, lifetime maintenance | |
